How to Make a Waterfall Chart in PowerPoint

Last updated on October 14th, 2024

The Waterfall Chart is a nice chart that helps to illustrate the change. This kind of chart is very effective and intuitive to use in PowerPoint presentations to show the total change along with a breakdown of the individual components that have driven a change.

Unfortunately, PowerPoint didn’t come with this chart type in their gallery of charts. However, we can easily tweak the bar chart available in PowerPoint to make it look like a waterfall chart. For this purpose, we will start using a Stacked Column Chart from the Chart Gallery.

What we are going to do in order to create a waterfall chart is:

Use the stacked column chart from Microsoft PowerPoint
Add a staggered data serie
Modify the bottom data series to fill with a transparent style

First, insert a simple bar chart from the gallery but make sure to choose the Stacked Chart from the list.

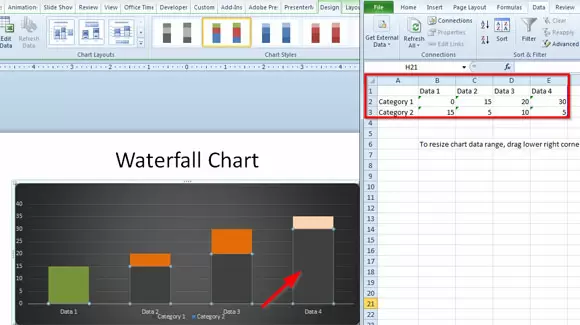

In the Excel spreadsheet, add all the required data points. As you can see in the following screenshot, consider adding the sums of each previous column to the next. So, for example, if your data points for Data Column 1 are 0 and 15, we will use 15 as the first value for the next column.

Example how to make a waterfall chart in PowerPoint — Example of Data in a Waterfall Chart created in PowerPoint

This kind of chart is also known as Build Up and Build Down. In fact, the Build Down version is the most similar to a waterfall representation. These charts are really good at highlighting individual components that build up to a total.

Now, select the bottom series (click there once only) and right-click to open the contextual menu. Here, click Format Data Series and then look for the Fill tab. Now, select No Fill to use a transparent color.

You can customize this chart even more; for example, you can reduce the gap width between bars to the minimum available.

no gap powerpoint — Adjusting the Gap Width in PowerPoint Waterfall chart

Build Up Waterfall Chart in PowerPoint

This is how the waterfall chart template will look instead:

Waterfall chart PPT templtae — Waterfall chart PPT template

You can easily create this waterfall diagram for your presentations and customize it even more, for example to remove the dark background, grid lines and legents.

Build Down Waterfall Chart in PowerPoint

Here is another variant using the build down approach.

chart build up template excel — Waterfall chart PPT templtae

This kind of charts and diagrams can really help to make more attractive presentations, especially for sales and financial presentations. For example, it is commonly used to represent a financial change over the years (YoY or Year Over Year comparison chart in PowerPoint). You can also use this build up and build down chart to represent the office costs or expenses in a organization.

For your convenience, here you can download the chart template ready to be used in your presentation. Learn more about how to export and use your charts to templates.

Waterfall (4606 downloads ) Waterfall PowerPoint Sample (8617 downloads )
